Description
can you mix 250k and 500k pots CTS 500k/250k Audio/Log Push-Pull Pot, Solder-Free – ToneShapersBuy more and save on these PP02 pots! Solder free! 500k 250k (selectable) audio taper Split, knurled shaft (24 teeth), for push on knobs Included sleeve turns split shaft pot into 1 4" solid shaft for setscrew knobs 3 8 32 SAE bushing thread . 500" bushing length, long enough for rear routed guitars Screwdriver included The best guitar pots we're aware of are made by CTS, and these CTS push pull pots combine that great CTS quality with the convenience
Buy more and save on these PP02 pots!
- Solder free!
- 500k/250k (selectable) audio taper
- Split, knurled shaft (24 teeth), for push-on knobs
- Included sleeve turns split-shaft pot into 1/4" solid-shaft for setscrew knobs
- 3/8-32 SAE bushing thread
- .500" bushing length, long enough for rear-routed guitars
- Screwdriver included
The best guitar pots we're aware of are made by CTS, and these CTS push/pull pots combine that great CTS quality with the convenience of a built-in DPDT switch that can be used for many things: coil splitting, phase reverse, series/parallel, and more.
DOES NOT FIT IN TELE ROUT
The circuit board hanging out on one side prevents this pot from fitting in a standard Telecaster control cavity.
Our Solderless Version Solves a Problem

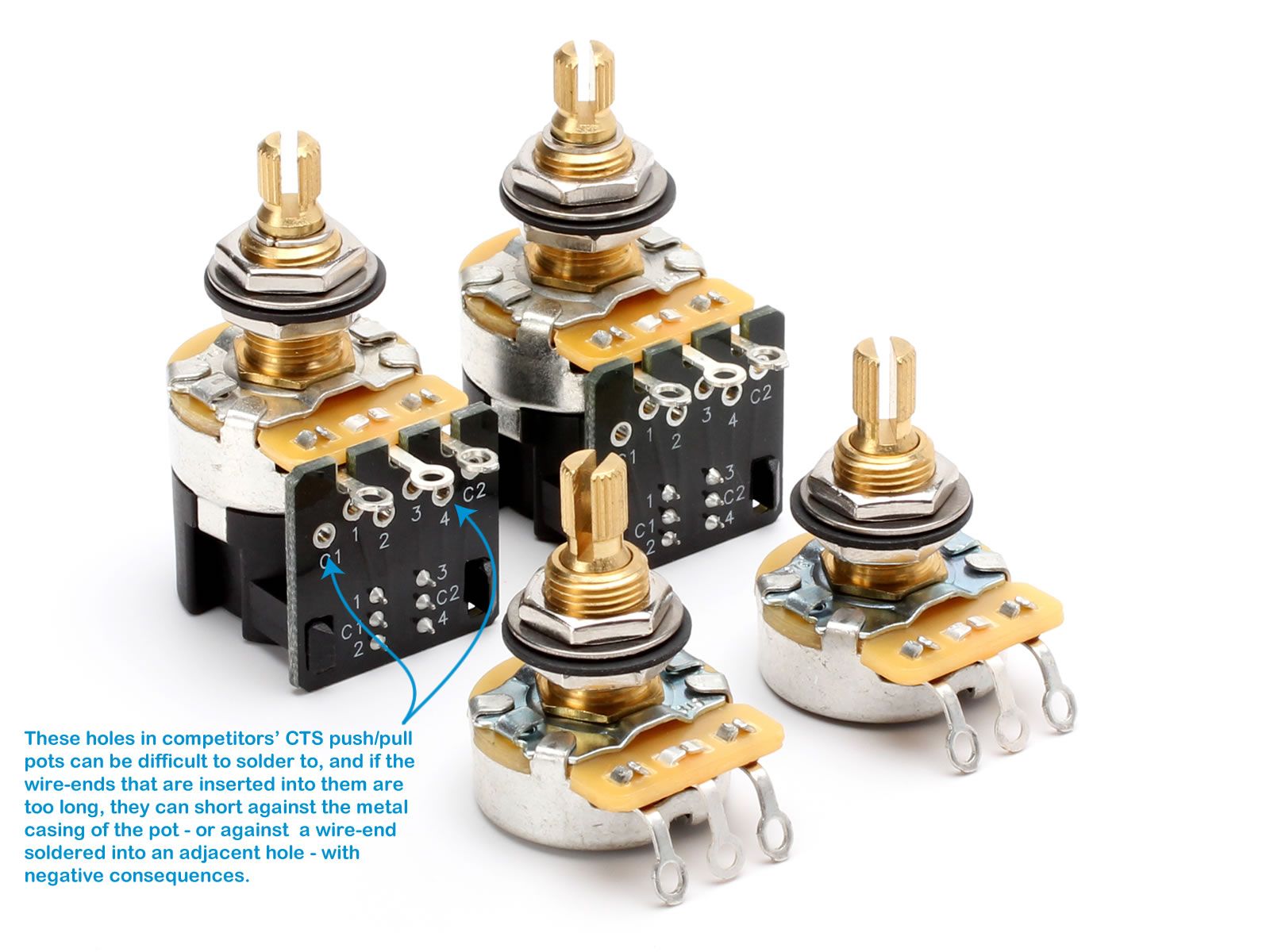

When we first saw the CTS DPDT push/pull pots we knew they'd be somewhat daunting to solder to, as the wire connections for the switch are made via holes in the circuit board. You have to stick the wire into the hole, try to hold it in place without wiggling it, then solder it to the circuit board. There's not much room, and once a couple of wires are in place it gets pretty crowded. The three pot contacts are straightforward and easy to solder to, but the six holes for the switch contacts are anything but, unless you're an experienced solderer.
The ToneShaper Solution
Our pots use screw-down terminal blocks: insert the wire, tighten the screw, done! Easy peasy, and we even provide the screwdriver. The terminal block has nine slots: three for the pot, and six for the switch, so no soldering is required at all. Pay a few bucks extra and save yourself a bunch of hassle!
Option One: PP01 (500k)
We offer two versions of our push/pull. PP01 is just a straight-ahead push/pull, it does exactly what any push/pull pot does, nothing more and nothing less, but it's fully solderless.
Option Two: PP02 (Use as 500k or 250k)
Our PP02 pot is just like our PP01 but with several additional features built-in, and you can enable or defeat these options using the mini-DIP switches:
- Engage a resistor to drop the pot loading from 500k to 250k
- Built-in treble bleed may be engaged (when used as a volume control)
- Choose from seven built-in capacitor values (when used as a tone control)
